SPECIFICATIONS
- Wetted Parts SS316L
- Maximum Operating Temperature: upto 250°C
- Maximum Operating Pressure: 40 Kg/cm²
- Hydraulic Tested at: 80 Kg/cm²
- Level Point Measurement: 3 Points
- Liquid Conductivity: Minimum 5us/cm
- Probe Length: 500 / 1000 / 1500 mm
- Connection: 1” BSP screwed or flanged IBR approved

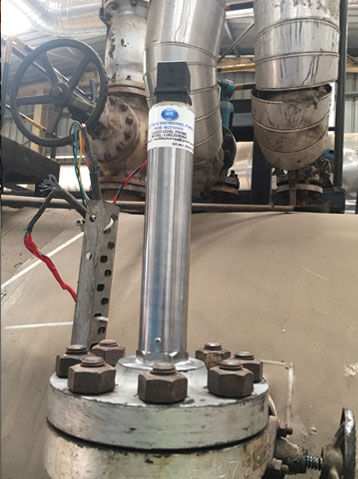

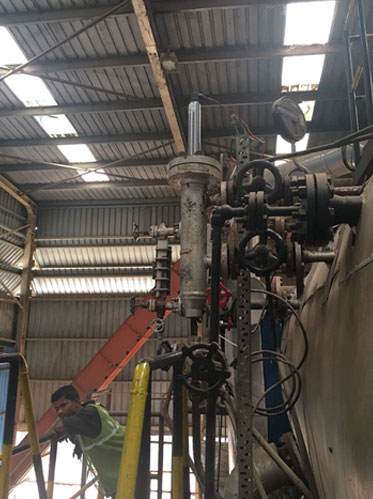

- Mounting Position: Vertical on boiler standpipe

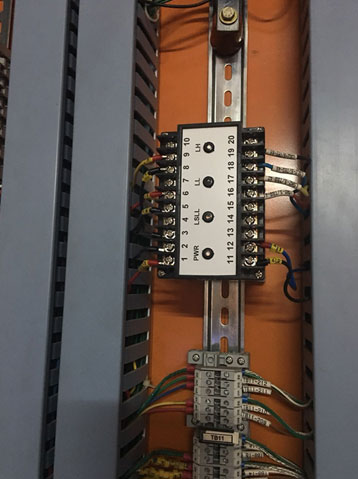

- To be used with electronic liquid level controller series: CS05LQ / CS10LQ
APPLICATION
- Boiler drum level control
- High pressure tank level control
- Chemical tank level control
